Barausse's glass doors run on two aluminium profile systems, TIP and TAP, both 45 mm thick. TAP is the evolution of TIP and the only one that allows different glass finishes within a single leaf.
Profile thickness
45 mm, for both the TIP and TAP profiles
Maximum dimensions, hinged
TIP profile: 1100 × 2700 mm (or 900 × 3000 mm); TAP profile: 900 × 2700 mm (or 800 × 3000 mm)
Combined glass
Only models with the TAP profile allow heterogeneous glass finishes within the same leaf
Closing hardware
Hinged and pivot doors can close with a magnetic device instead of a lock; the number fitted depends on the door's size and weight, and they can sit at the top and/or bottom of the leaf
Glass types
Tempered glass — transparent, frosted or back-lacquered — and laminated glass with an internal metal mesh
Glass certification
Safety glass compliant with the UNI EN 12600 standard
Compact hinge
The Compact pin hinge is adjustable on 3 axes, allows a 180° opening and is rated to 65 kg; it is always supplied in the same finish as the leaf profiles
Glass doors in slim profiles — transparency and light between spaces.

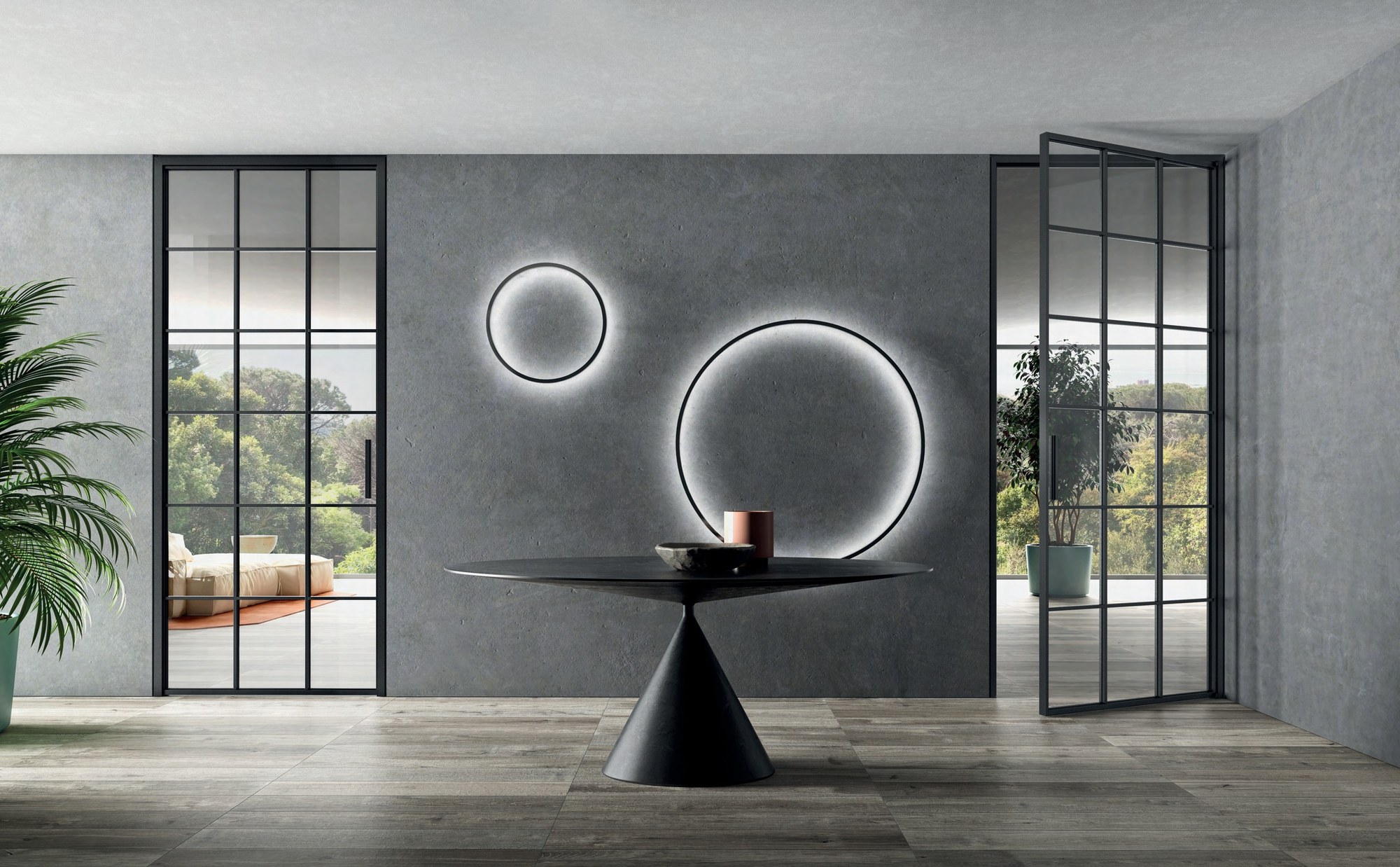

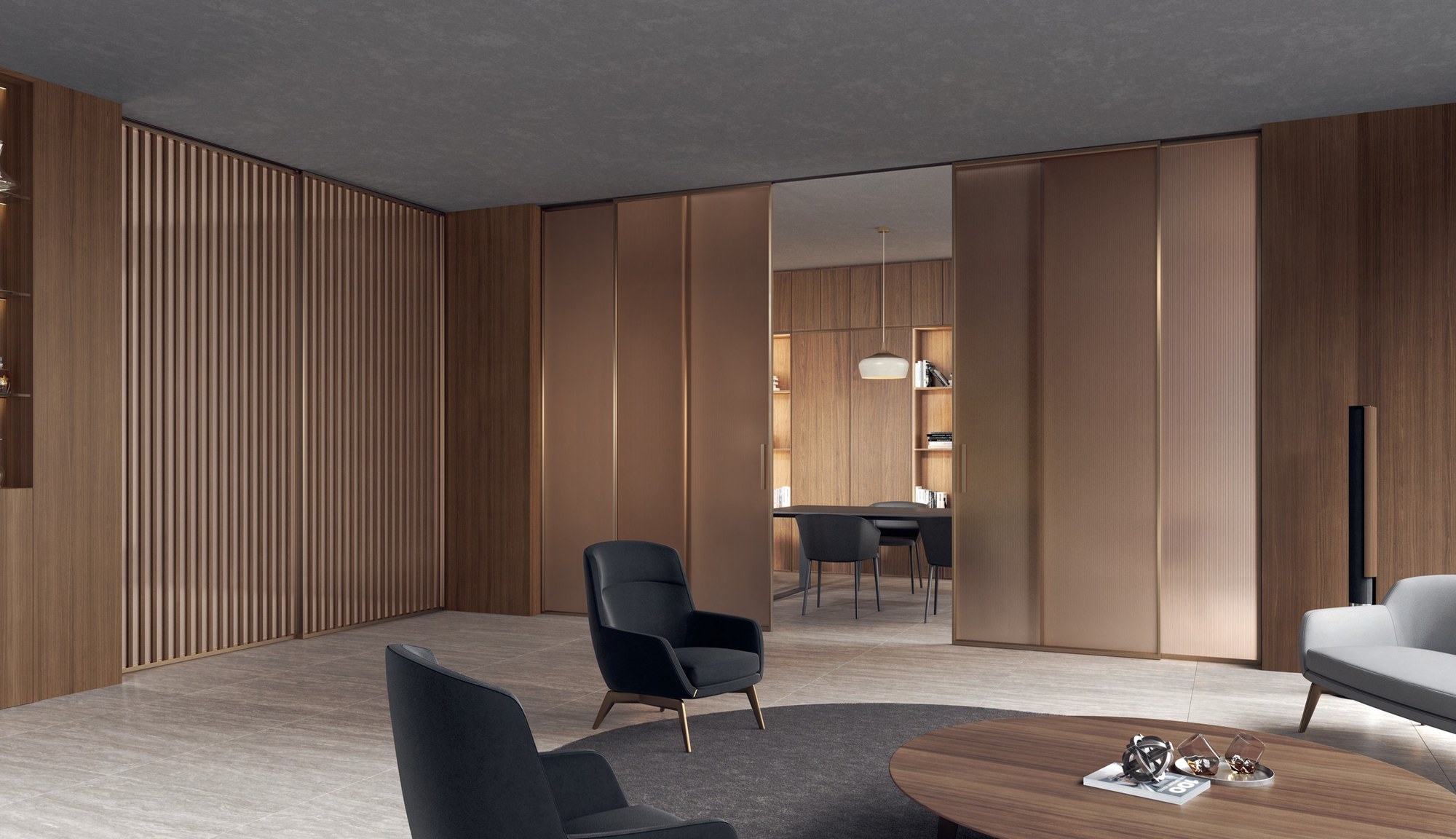

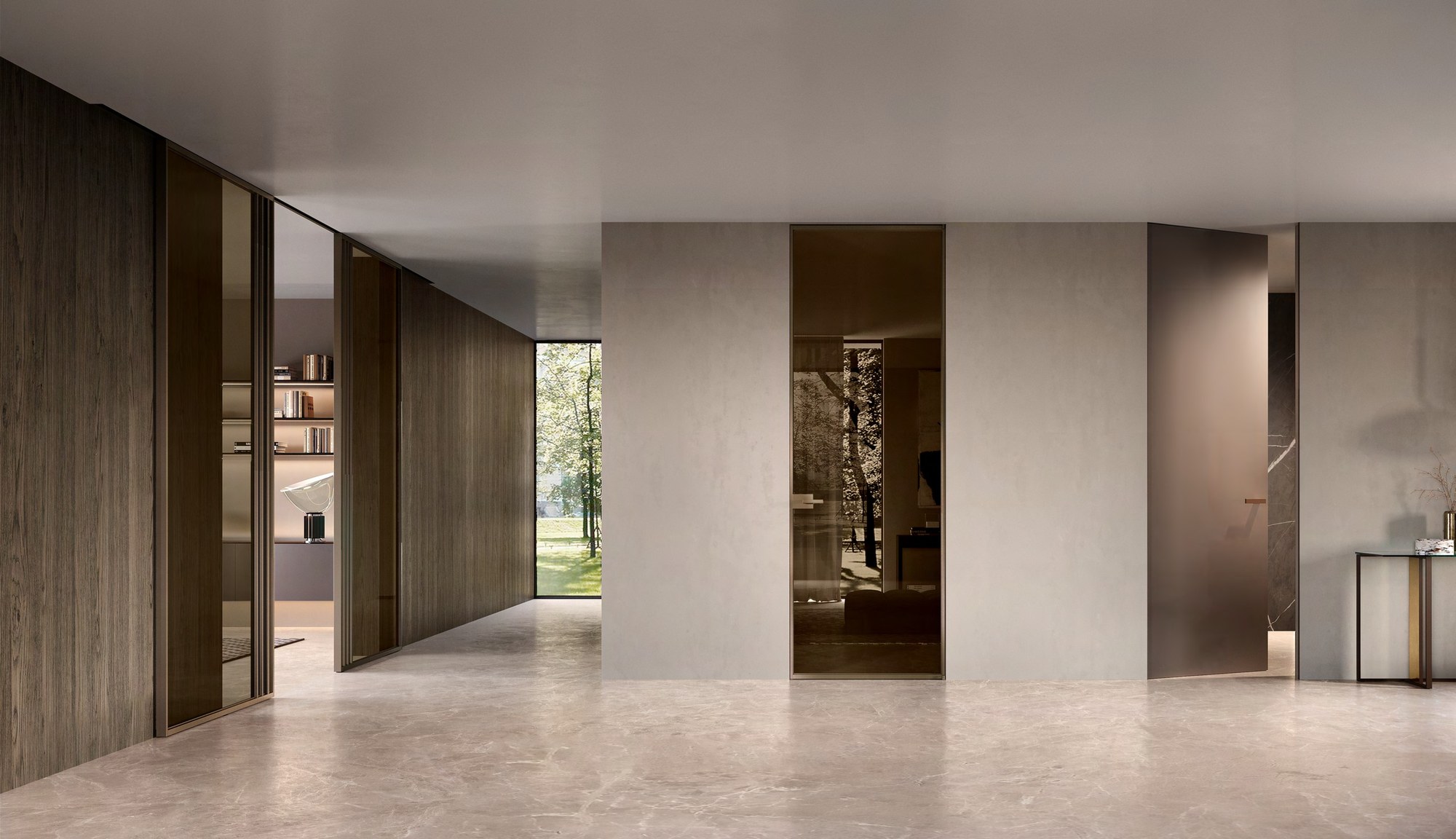

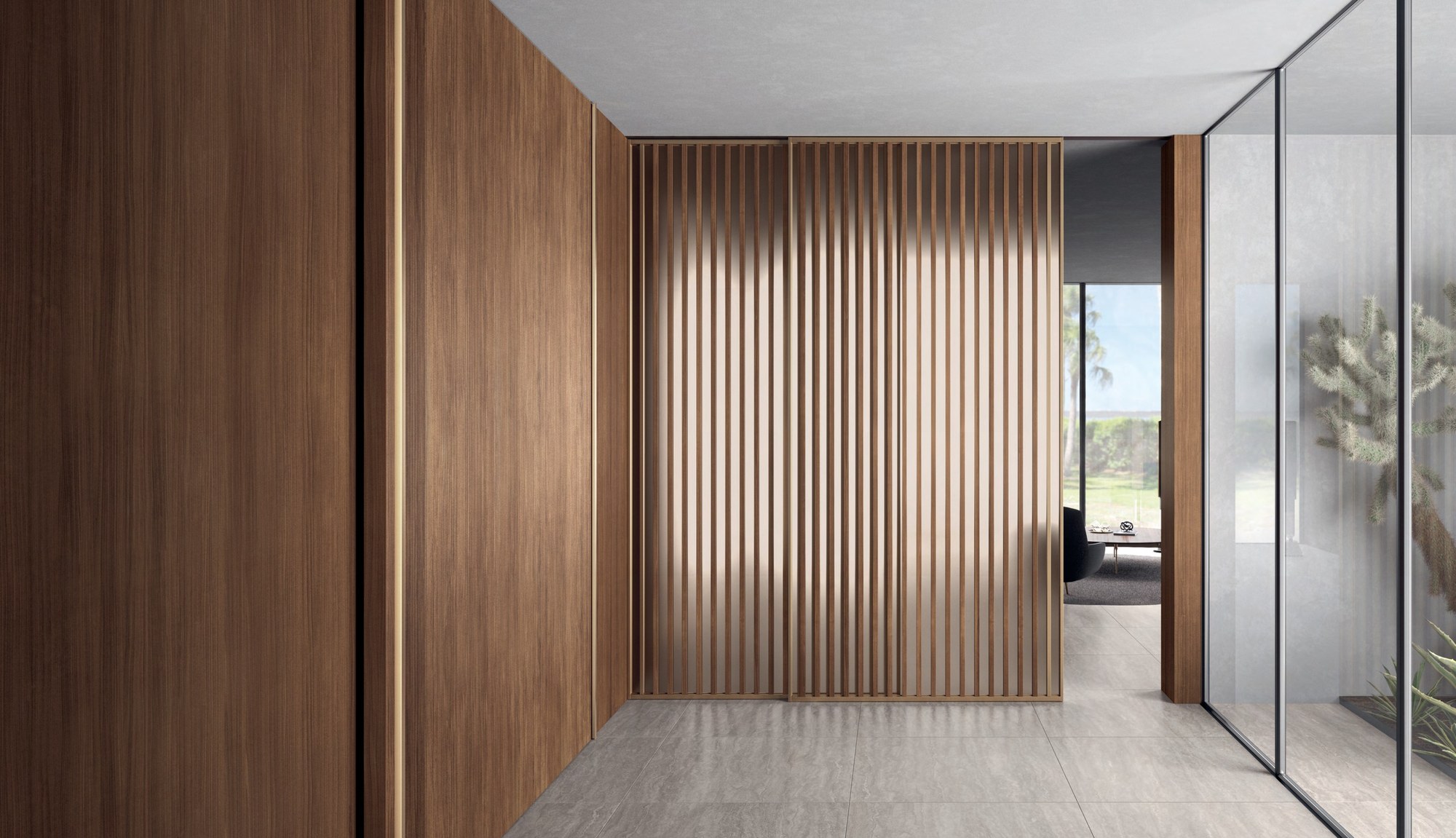

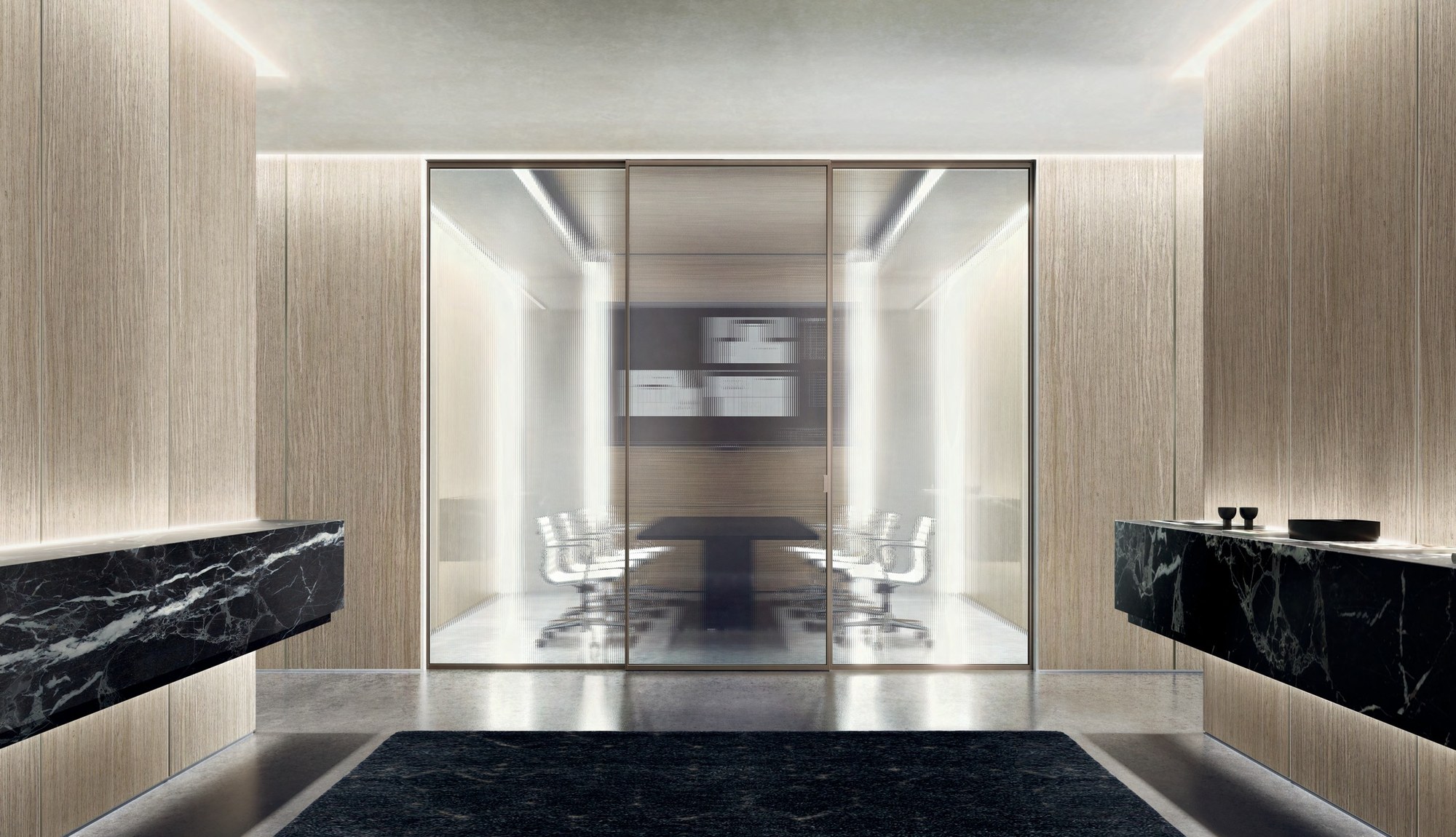

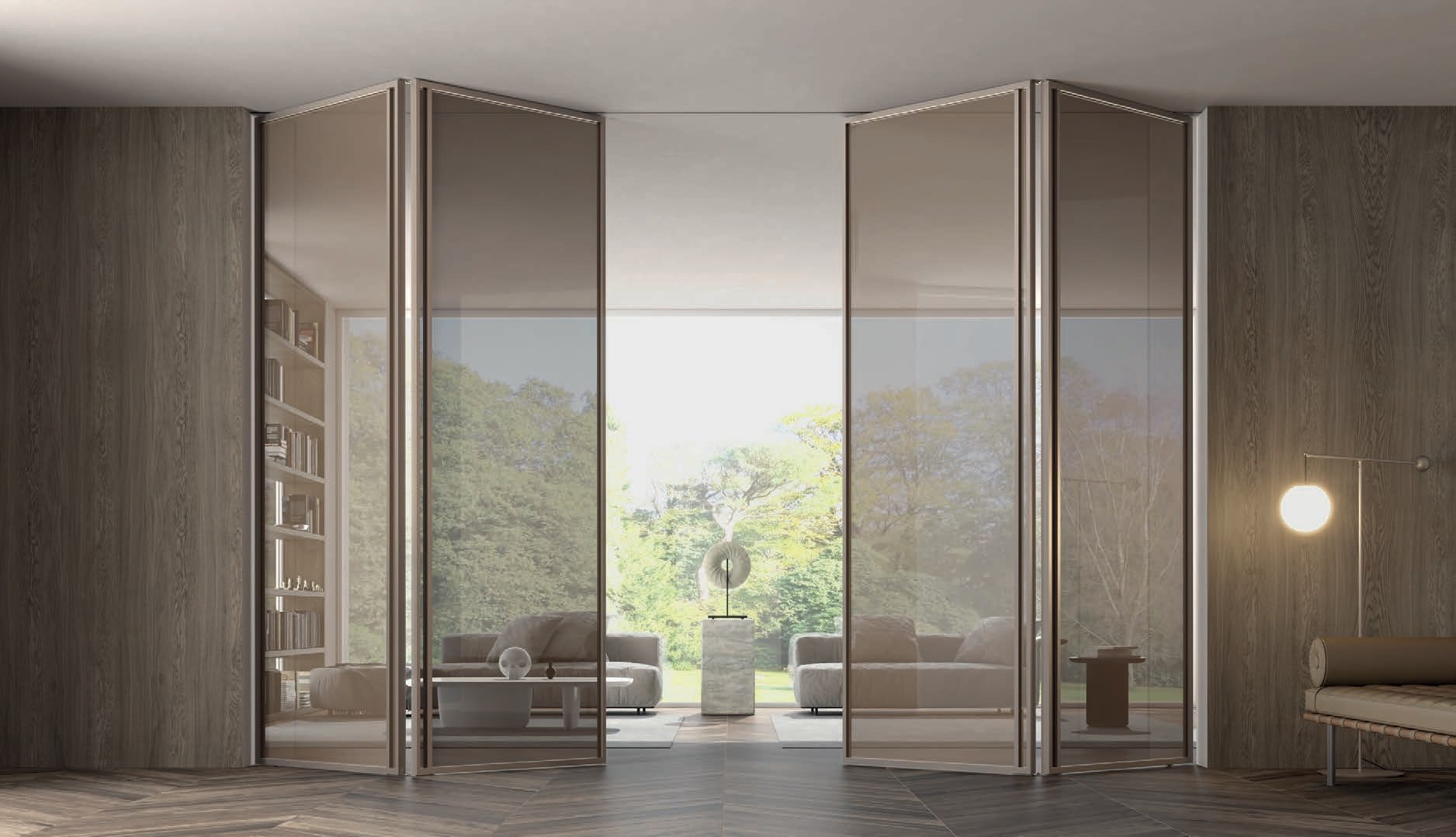

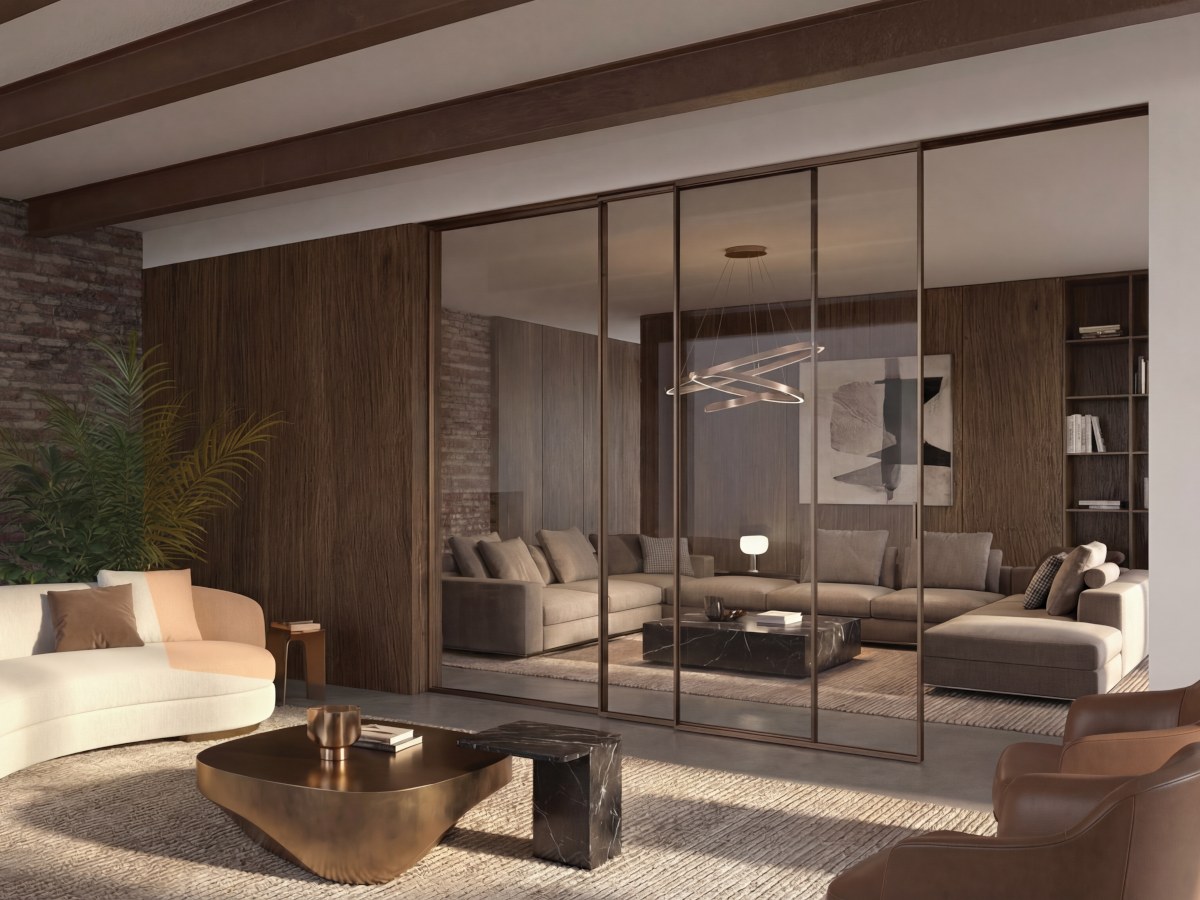

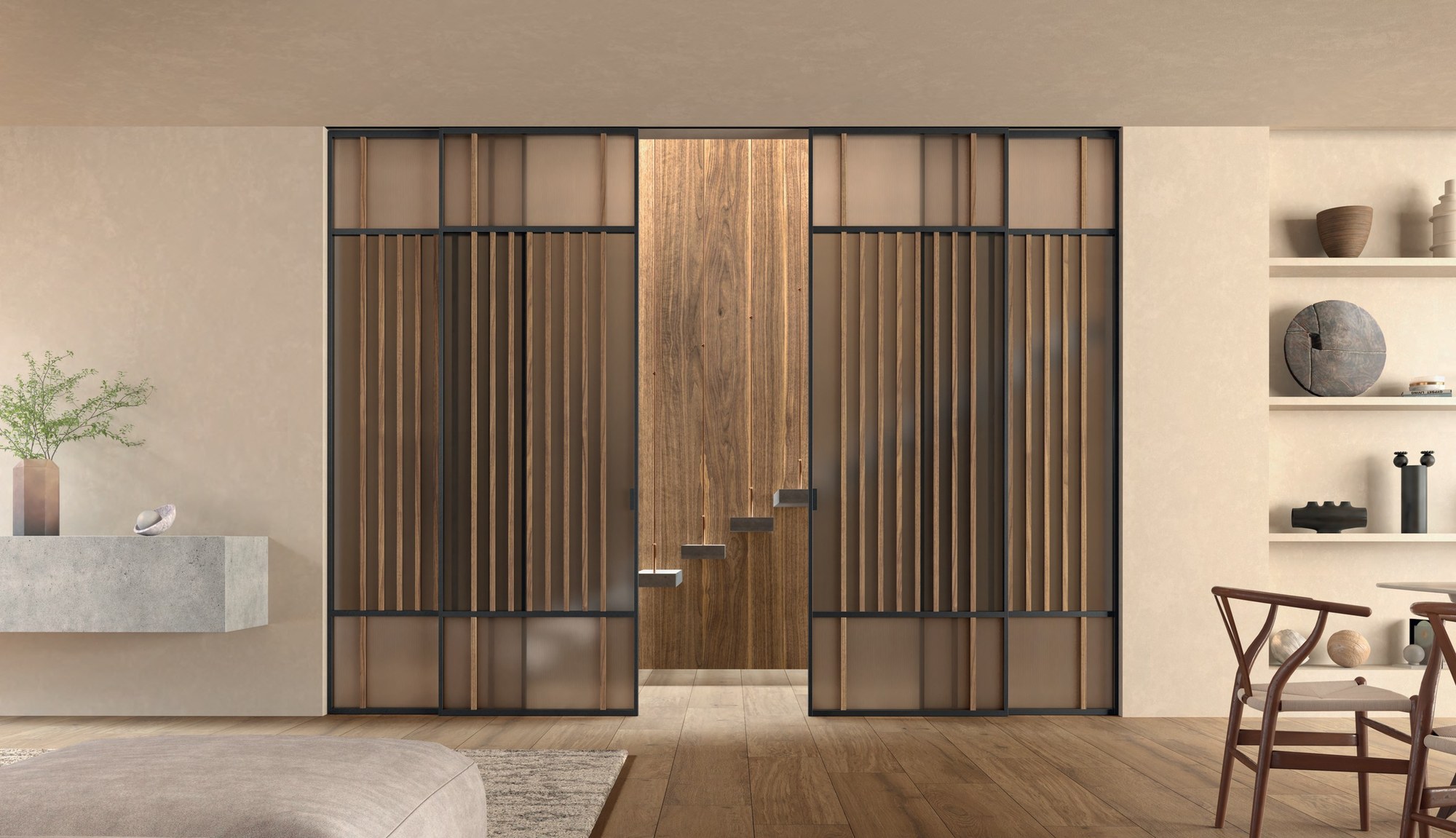

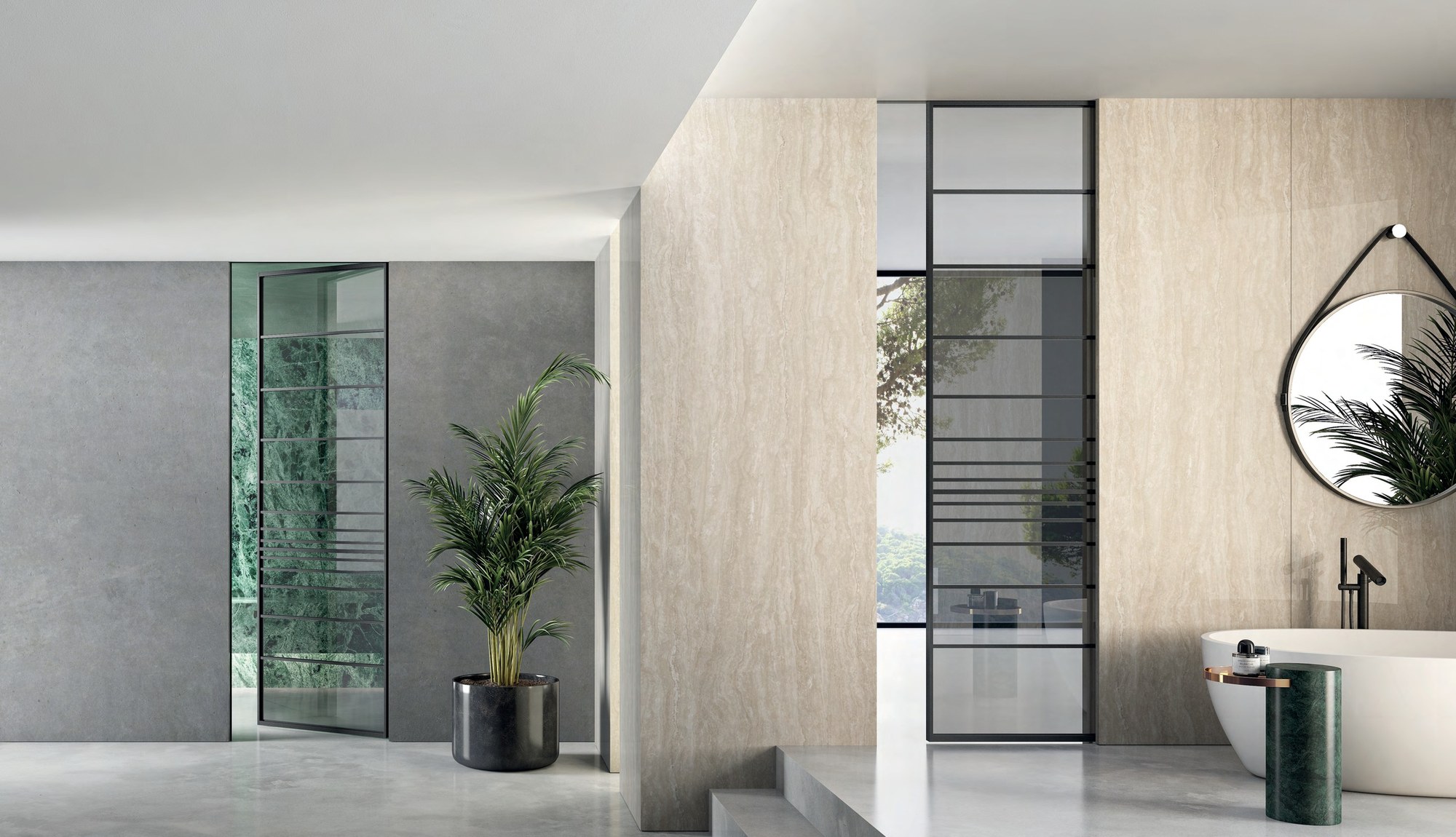

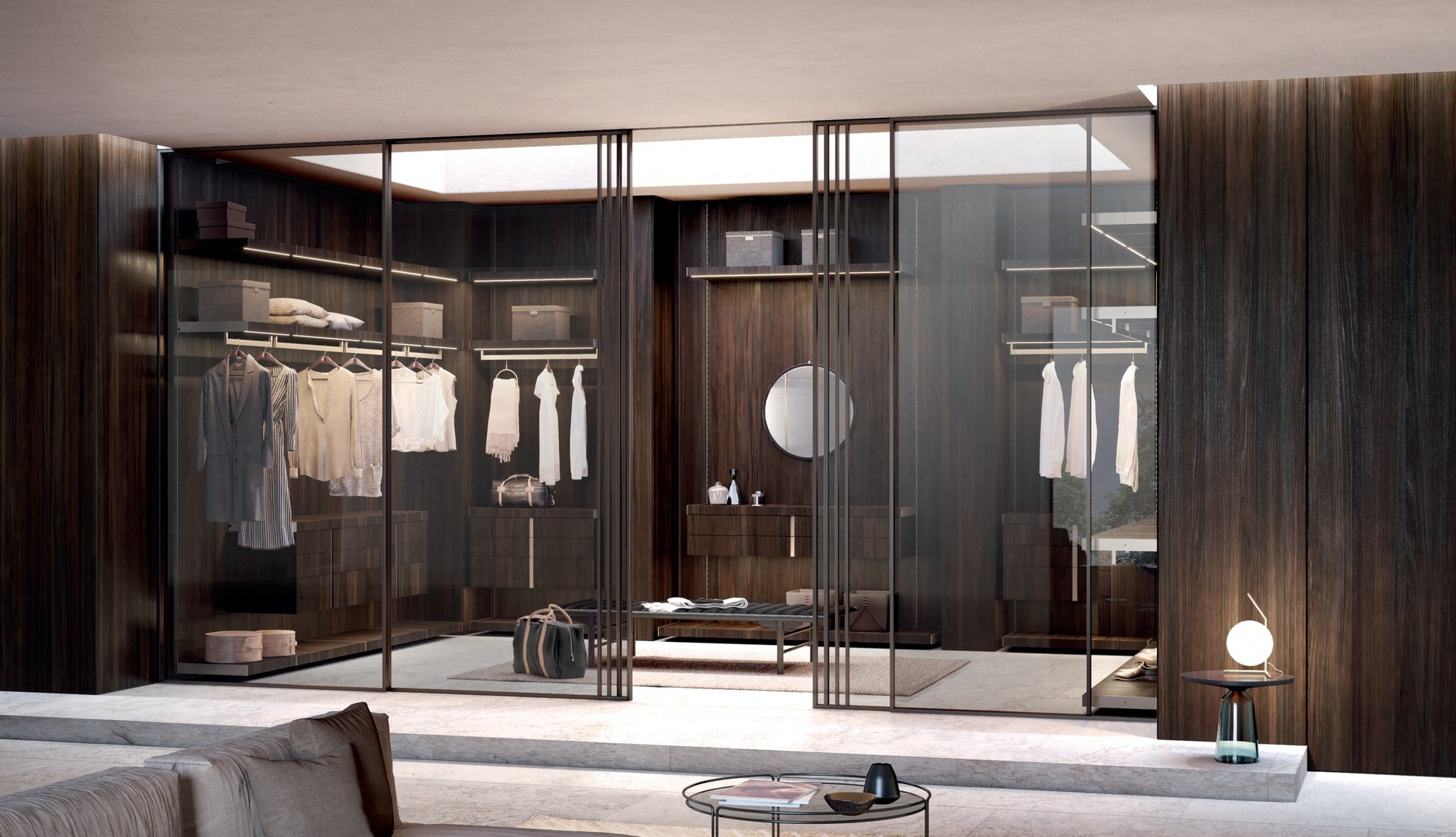

In a spaceAnother viewDetailGlass doors in a spatial atmosphereGlass doors detail in a real interiorGlass doors complete compositionGlass doors space viewGlass doors catalogue sceneGlass doors in natural lightGlass doors in a spatial atmosphereGlass doors detail in a real interior
