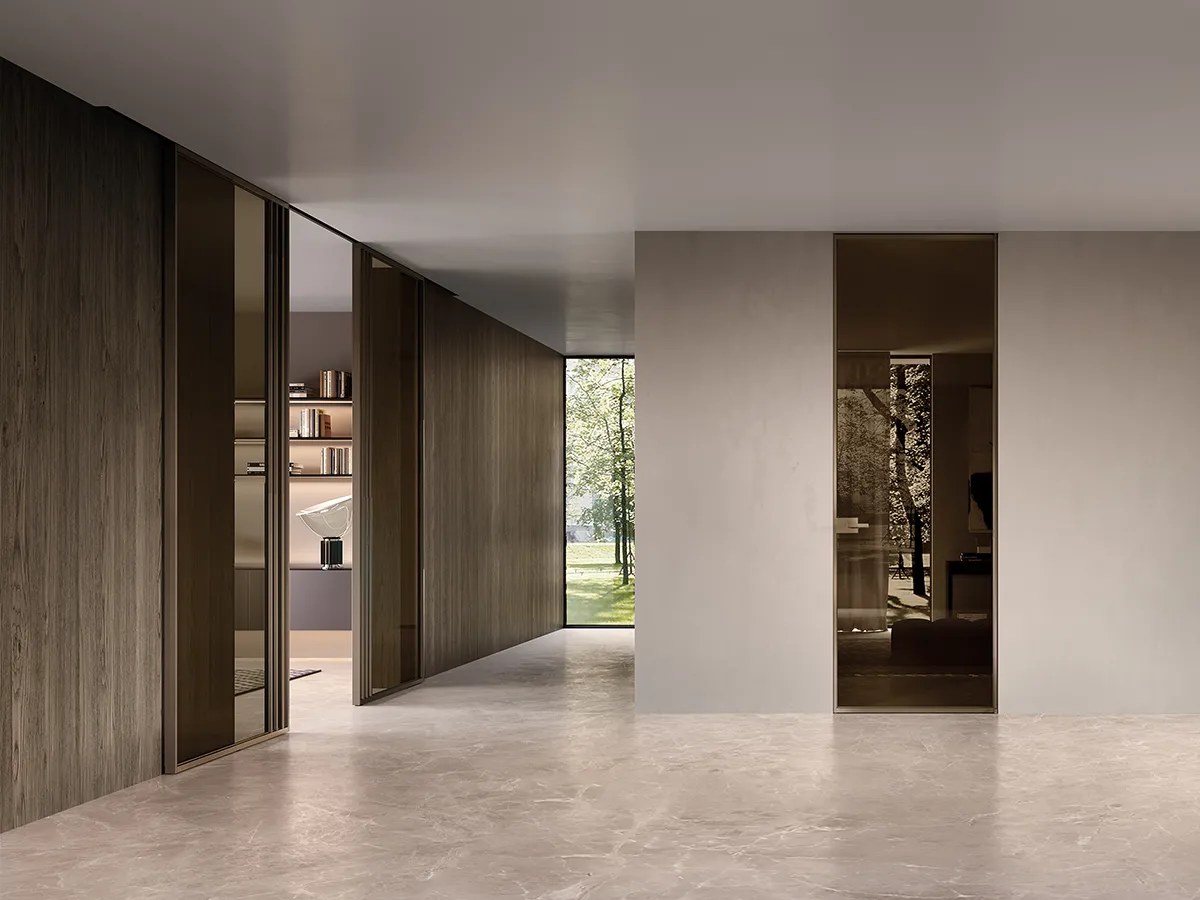

Hinged doors with visible frame

Specification

Contemporary doors are made to measure in a visible wooden or aluminium frame — corners cut square on linear frames, mitred at 45° on moulded ones — with the leaf reaching 4000 mm.

Maximum leaf dimensions

4000 mm height × 1200 mm width

Maximums by frame type

With a visible aluminium frame and a 60 mm leaf: 1000 × 4000 mm or 1200 × 3000 mm; with a visible wooden frame and a 60 mm leaf: 1200 × 3000 mm; with a 45 mm leaf on either: 1000 × 3000 mm. Minimum leaf width 600 mm

Frame types

Linear frames with perpendicular corners, or moulded frames with corners mitred at 45°

Frame models

TNP, TNP INVERSO, TN PLUS, NB and FN among the linear; ERA STILE, ERA PALLADIO, ERA GIOTTO, TNP ESPRIT and TNP PRISMA across the range

Leaf construction

A perimeter frame in solid fir strips, with stability rods on leaves over 2500 mm

Panel coating

6 mm HDF fibreboard, density greater than 800 kg/m³

Soundproofing by filling

Honeycomb card ~20 dB · perforated chipboard 26 dB · fireproof mineral fibre (Fibropyr) 30 dB · soundproof panels 37 dB

Hinges

Simonswerk ST311 concealed hinges, 2 per leaf up to 2400 mm height and 4 above it; the FN frame takes ECLI 3.0 hinges
